Assembly MethodSurface Mounted - SuspendedLed TypeMidpowerSystem Power (W)21 - 50Luminous Flux (lm)2.000 - 5.000Protection ClassIP 20IP 54
DFR60

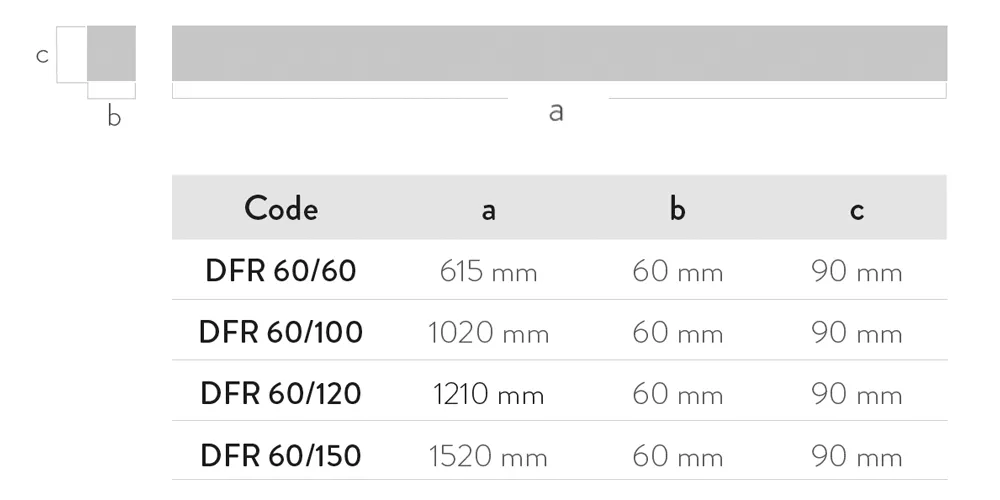

Detailed Product Features
Detailed Product Features
Body:
Body:

Extruded aluminum body.

Diffuser:

Made of high light transmittance opal material.

Accessories:
Accessories:

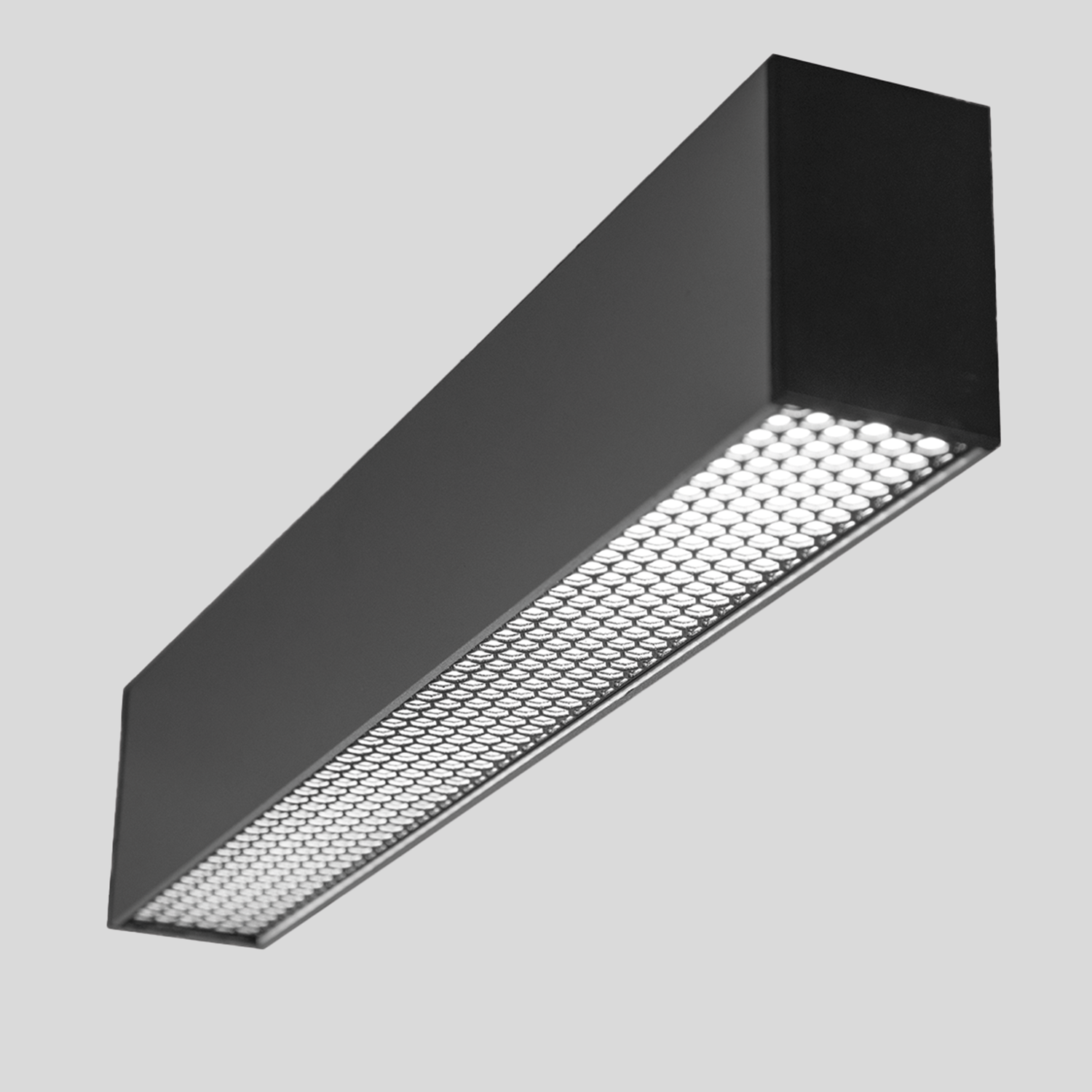

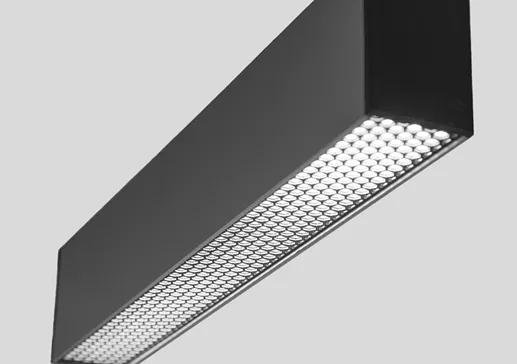

Glare is reduced to minimum levels in the luminaires by using a honeycomb louvre.

The EOSLED luminaire series developed by LİTPA has a direct/indirect lighting design and is offered in two different width options. It can be used as a single-piece profile up to approximately 2.5 meters in linear applications. The luminaires provide both direct and indirect light distribution and are mounted by hanging from the ceiling with steel wires that are easily adjustable thanks to a special suspension mechanism.

CodeLuminous FluxSystem Power (W)Protection ClassWeight
DFR60 / 1002.800 lm30 WIP20 / IP543.00 Kg
DFR60 / 1203.360 lm35 WIP20 / IP543.75 Kg
DFR60 / 1504.200 lm45 WIP20 / IP544.50 Kg

In Application

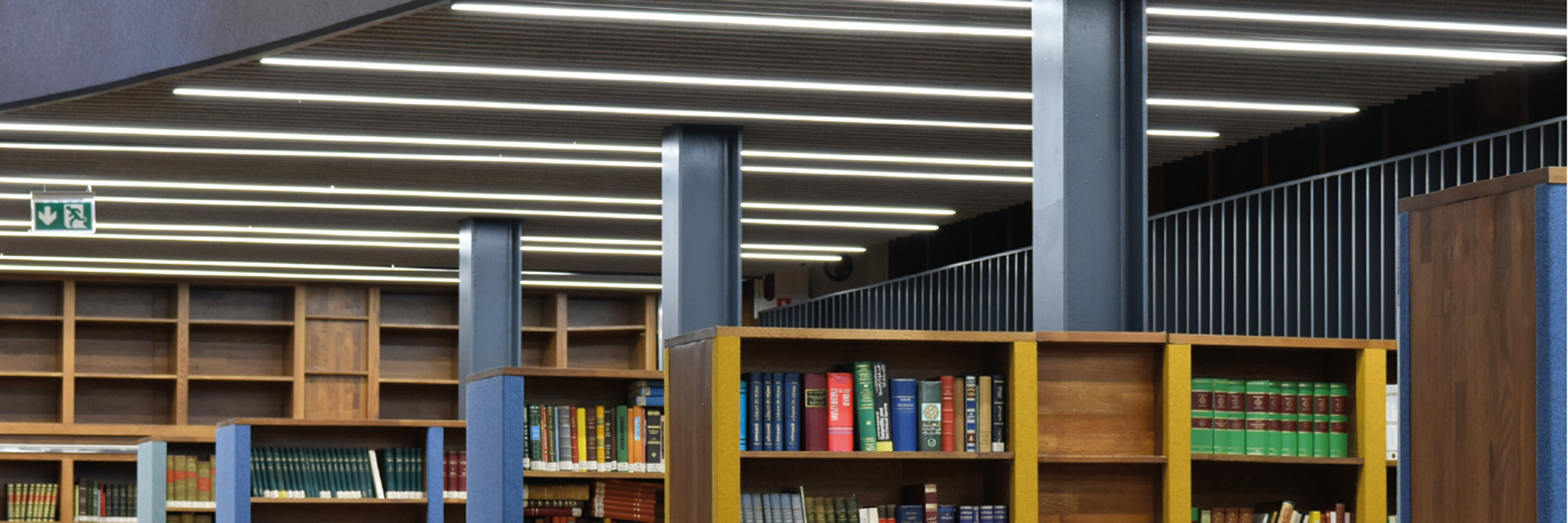

DFR Application
