Assembly MethodSurface Mounted - SuspendedLed TypeMidpowerSystem Power (W)< 1011 - 20Luminous Flux (lm)< 1.0001.000 - 2.000Protection ClassIP 20IP 40
DFR20
Detailed Product Features
Detailed Product Features
Body:
Body:

Extruded aluminum body.

Diffuser:

Made of high light transmittance opal material.

The EOSLED luminaire series developed by LİTPA has a direct/indirect lighting design and is offered in two different width options. It can be used as a single-piece profile up to approximately 2.5 meters in linear applications. The luminaires provide both direct and indirect light distribution and are mounted by hanging from the ceiling with steel wires that are easily adjustable thanks to a special suspension mechanism.

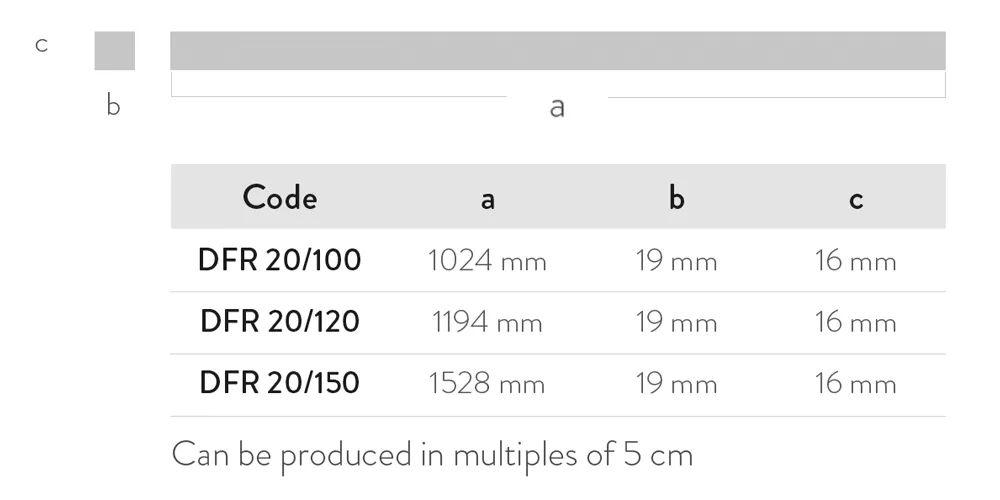

CodeLuminous FluxSystem Power (W)Protection ClassWeight
DFR20 / 50625 lm7.5 WIP20 / IP400.15 Kg
DFR20 / 1001.250 lm15 WIP20 / IP400.30 Kg
DFR20 / 1201.550 lm17.5 WIP20 / IP400.40 Kg
DFR20 / 1501.850 lm20 WIP20 / IP400.50 Kg

In Application

DFR Application
