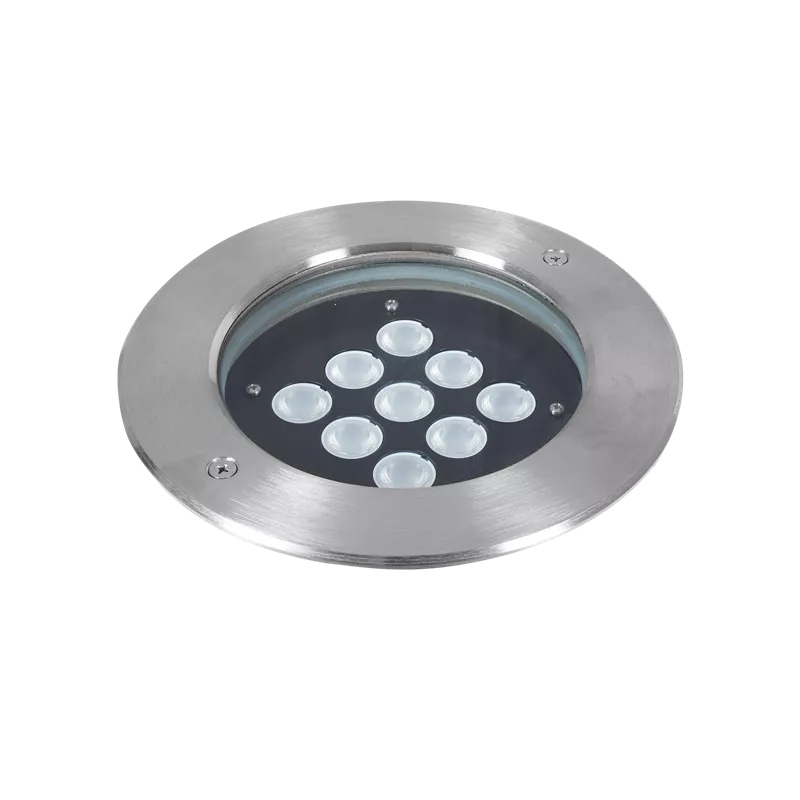

Outer ring is stainless steel, body is aluminum.
8 mm thick, weather-resistant tempered glass

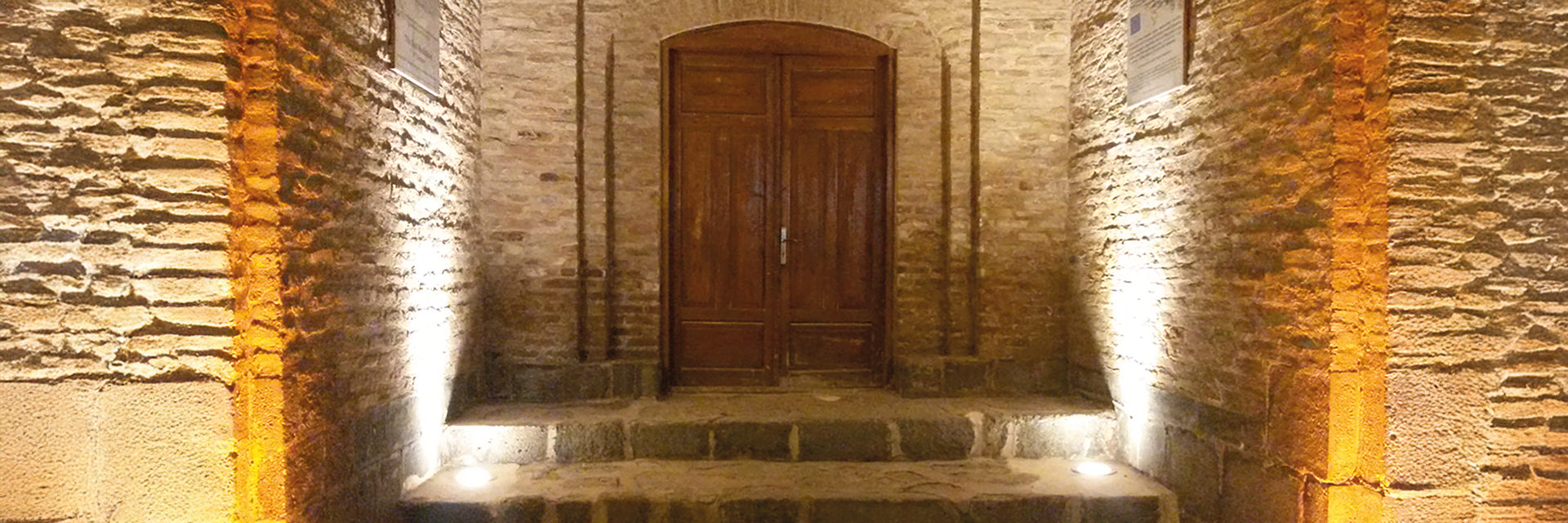

HADES inground fixture series offers a safe and aesthetic lighting solution for both indoor and outdoor applications. With its robust body and high impact resistance, it is ideal for walking paths, squares, and facades. Its high Protection Class and LED technology ensure long-lasting and efficient performance.
| Code | Beam Angle | Luminous Flux | System Power | Protection Class | Weight |
| HYL 12 | 10° | 1.260 lm | 15W | IP67 | 2.6 kg |
| HYL 12 | 30° | 1.410 lm | 15W | IP67 | 2.6 kg |
| HYL 12 | 45° | 1.510 lm | 15W | IP67 | 2.6 kg |
| HYL 12 | Ellipsoidal | 1.450 lm | 15W | IP67 | 2.6 kg |
| HYL 9 | 10° | 940 lm | 12W | IP67 | 2.5 kg |
| HYL 9 | 30° | 1.050 lm | 12W | IP67 | 2.5 kg |
| HYL 9 | 45° | 1.125 lm | 12W | IP67 | 2.5 kg |
| HYL 9 | Ellipsoidal | 1.080 lm | 12W | IP67 | 2.5 kg |
