Die-cast aluminum body.
5 mm thick tempered glass

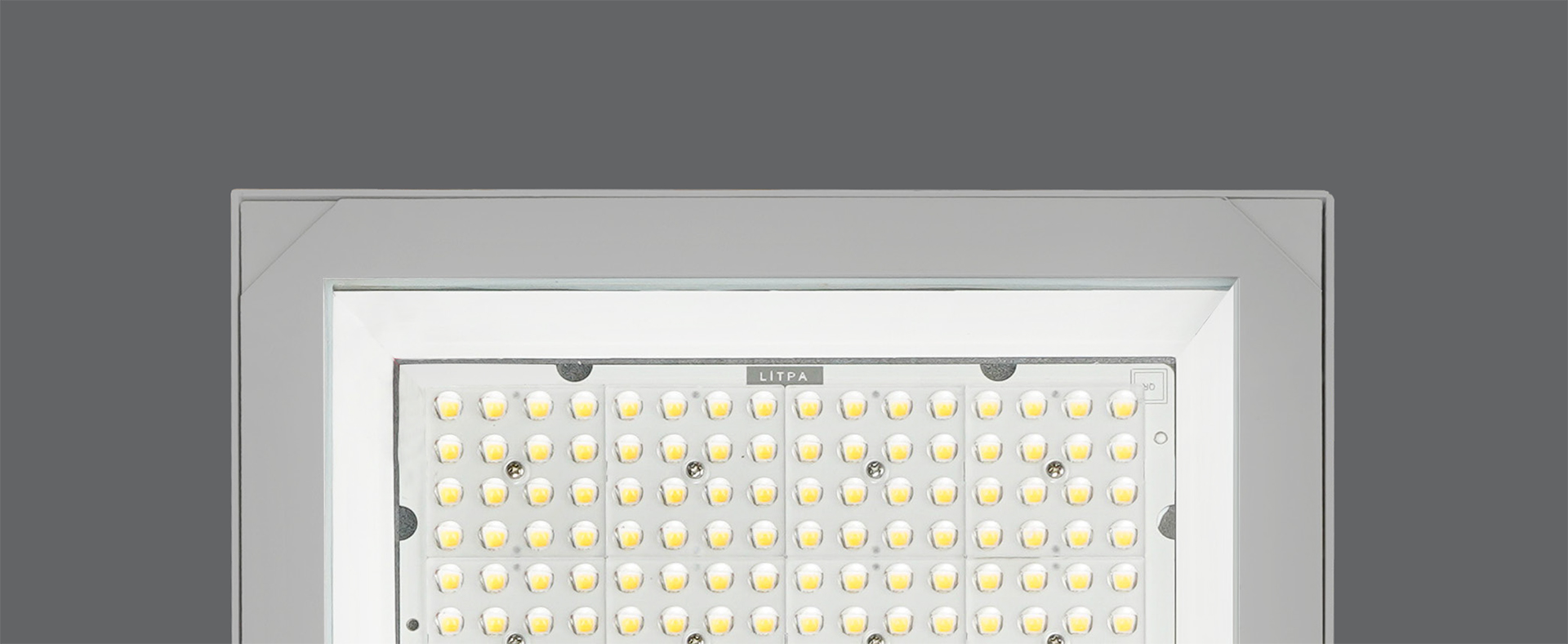

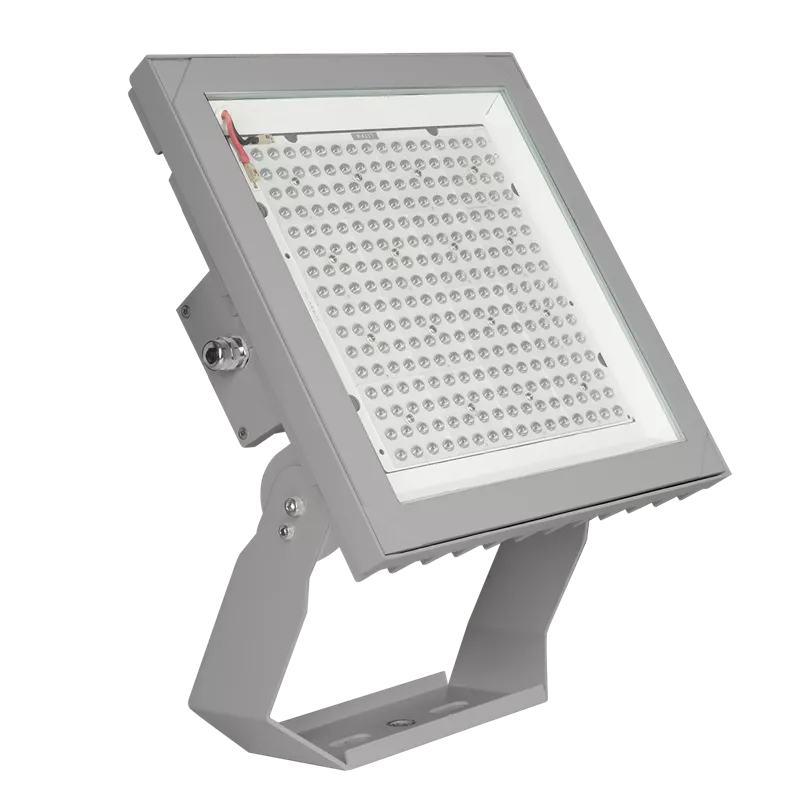

Herculed Mini offers an efficient, economical, and durable lighting solution for wide application areas. With its light and functional body and different optical options, it is ideal for general area lighting, sports facilities, environmental security lighting, and facade lighting. While its corrosion-resistant casing ensures long-lasting use, its LEDs and drivers are designed to safely withstand outdoor conditions.
| Code | Beam Angle | Luminous Flux (lm) | System Power (W) | Protection Class | Weight |
| HCL/Mini/100 NB | 25° | 13.350 lm | 100 | IP66 | 6 Kg |
| HCL/Mini/100 WB | 60° | 13.710 lm | 100 | IP66 | 6 Kg |
| HCL/Mini/100 VWB | 110° | 14.410 lm | 100 | IP66 | 6 Kg |
| HCL/Mini/100 AS | Asymmetrical | 12.910 lm | 100 | IP66 | 6 Kg |
| HCL/Mini/75 NB | 25° | 13.350 lm | 75 | IP66 | 6 Kg |
| HCL/Mini/75 WB | 60° | 13.710 lm | 75 | IP66 | 6 Kg |
| HCL/Mini/75 VWB | 110° | 14.410 lm | 75 | IP66 | 6 Kg |
| HCL/Mini/75 AS | Asymmetrical | 12.910 lm | 75 | IP66 | 6 Kg |
