LYS 50

LYS 50

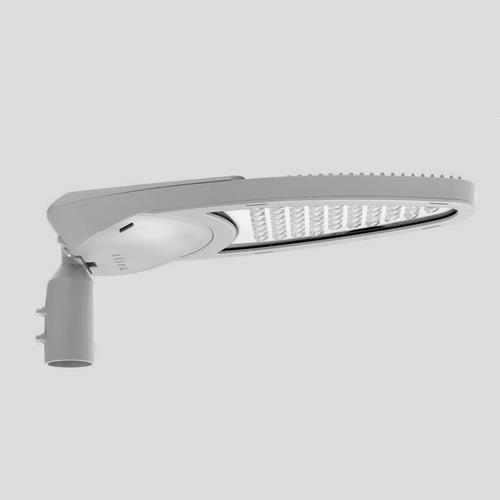

Streetray is a highly efficient IP66 protection class road lighting fixture which using LED technology.Our fixtures are produced in three different types as Mini, the Midi and Maxi. In this way, they can be utilized in a wide range from 2.080 lumens to 41.800 lumens.

STREETRAY road fixtures can be used in all areas of road lighting including M1 motorways, urban street lighting and lighting of alleys. Its monolithic integrally cooled die-cast aluminum body structure extends the life of light source and reduces maintenance costs. Streetray also offers many features such as angle adjustable mounting bracket, channel water management and bird repeller which can optionally be installed. The fixture’s body is designed to be suitable for all kinds of urban automation. Automation systems which can be used in Wi-Fi, Zigbee, RF, PLC, Dali, KNX systems are also available upon request.
Body: Injected aluminium
LED: High Efficient Power Led
Reflector: Furukawa MC PET
Glass: 5 mm thick and tempered, ground with serigraphic printing


Light Data

Catalogue Page

Code Led Luminous Flux (lm) System Power (W) Protection Class Weight (gr)
LYS 50/80High Efficiency Power LEDs10.15080IP669.800
LYS 50/110High Efficiency Power LEDs13.750110IP669.800
LYS 50/150High Efficiency Power LEDs17.250150IP669.800
