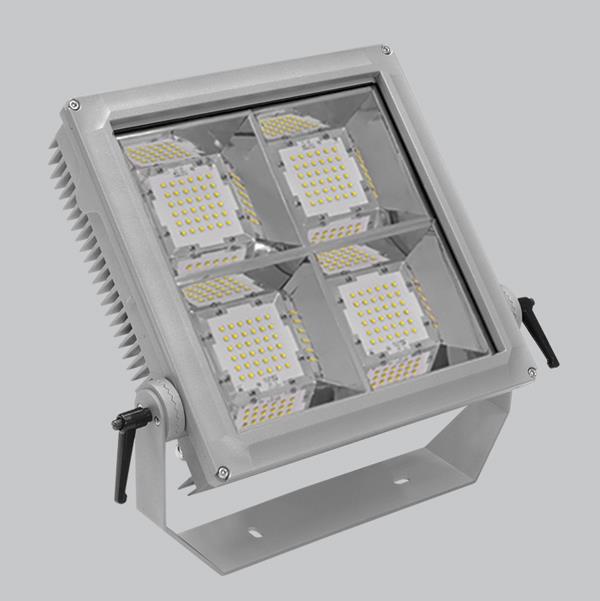

HCL/ST/S - HCL/ST/AS


HCL/ST/S - HCL/ST/AS

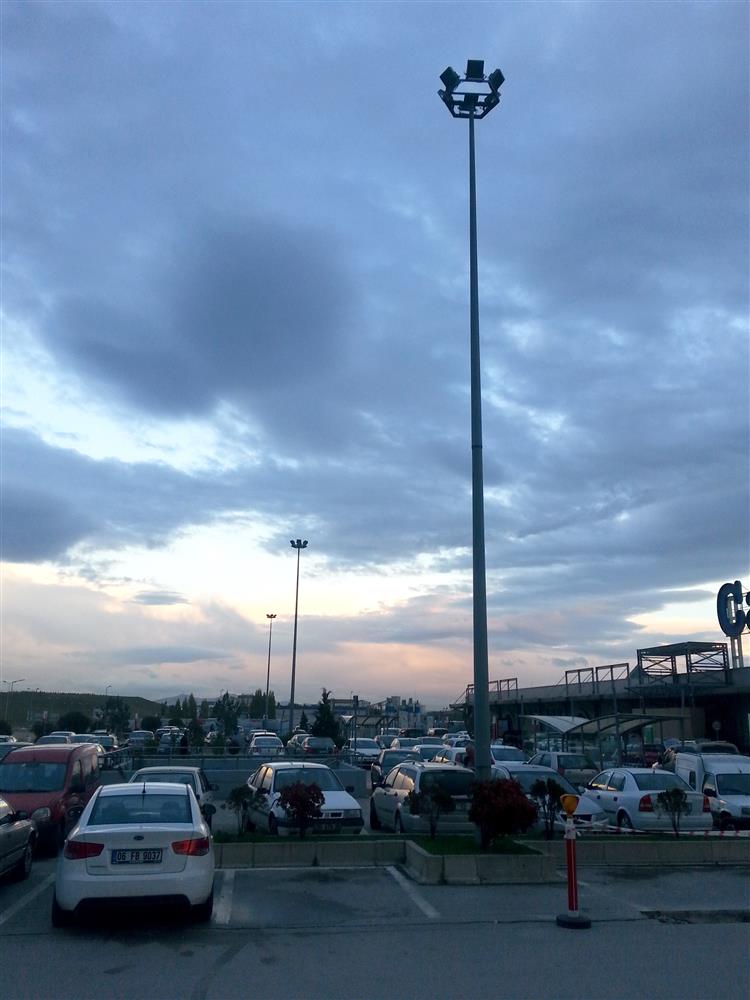

Herculed projectors can be used as white, red, green, blue and yellow light colors or as RGB in particular for outdoor lighting. It is possible put on and off, dim and manage many fixtures with different scenarios from a single point by the DMX system specially produced by Litpa. Herculed/ Area provides excellent and efficient solutions for different optical structures and standard area lighting while Herculed/Power meets all kinds of lighting requirements in high poles, facades and more precise lighting. Herculed/Basic offers RGB option and is ideal for decorative facade solutions.



Body: Aluminum injection


Diffuser: Shatter-proof, tempered glass


Reflector: Vacuum anodized Miro-Silver aluminum from Alanod with a reflectivity index of 97%. Symmetrical and asymmetrical options.


LED: Power Led

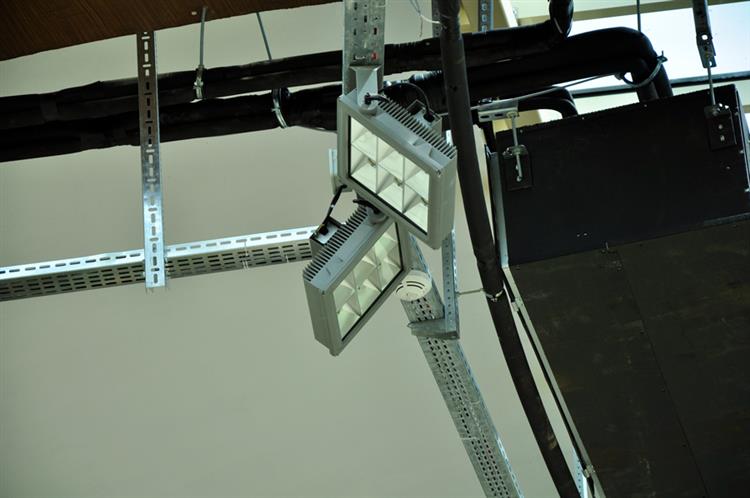

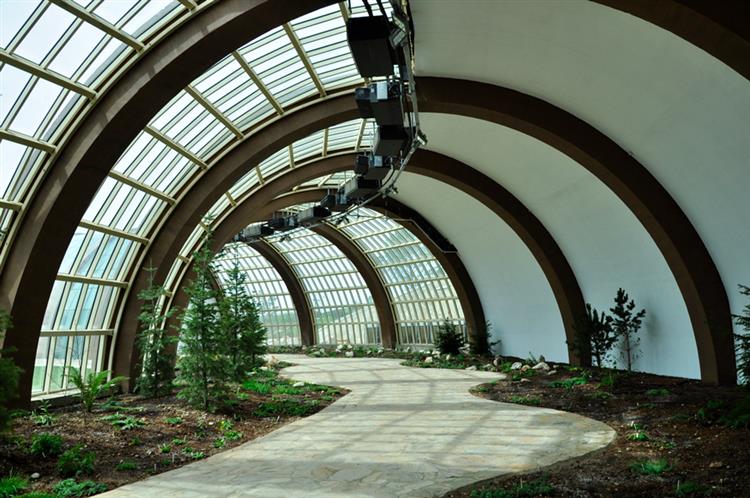

Installation

Catalogue Pages

Code Led Luminous Flux (lm) System Power (W) Protection Class Weight (gr)
HCL/ST/S 100Power Led 13.000100IP6612.100
HCL/ST/S 150Power Led 19.500150IP6612.100
HCL/ST/S 200Power Led 25.000200IP6612.100
HCL/ST/S 240Power Led 30.000240IP6612.100
HCL/ST/AS 100Power Led 14.200100IP6612.100
HCL/ST/AS 150Power Led 20.600150IP6612.100
HCL/ST/AS 200Power Led 26.100200IP6612.100
HCL/ST/AS 250Power Led 30.700250IP6612.100
