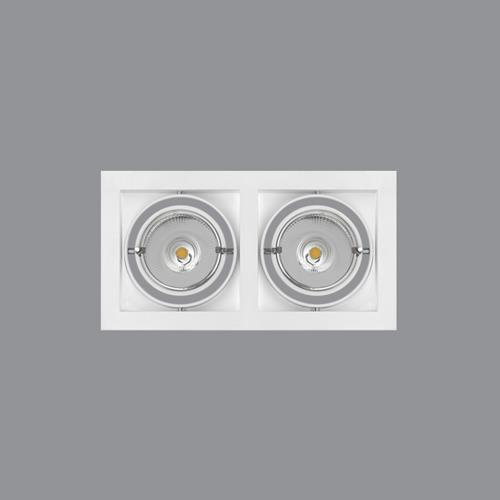

DML2


DML2

SHOWLED is a highly efficient and economical type fixture with a wide range of applications used in interior.  Spots in 2, 3 and 4-piece units are designed to move independently from each other. In this way, light from a single fixture can be transmitted to different directions. Mounting feet press firmly on the surface to prevent the gap between ceiling and the mounting frame and bad appearance due to assembly can be prevented. Different reflector structures offer possibilities to meet your requirements from the optical point of view. High LED efficiency and highly efficient reflectors thereof will provide significant energy savings for your business.


Body: Manufactured from 1 mm thick DKP stainless sheet, frame is manufactured from 1,5 mm painted with 80 micron powder paint

Reflector: High quality aluminum

Cooler: 6063 T5 aluminum extrusion



Installation

Light Data

Catalogue Pages

Code Led Luminous Flux (lm) System Power (W) Cut- Out (mm) Protection Class Weight (gr)
DML2/13COB LED2,70026380x180IP204.100
DML2/27COB LED5,30054380x180IP204.100
DML2/36COB LED6,70072380x180IP204.100
