DFG 20


DFG 20

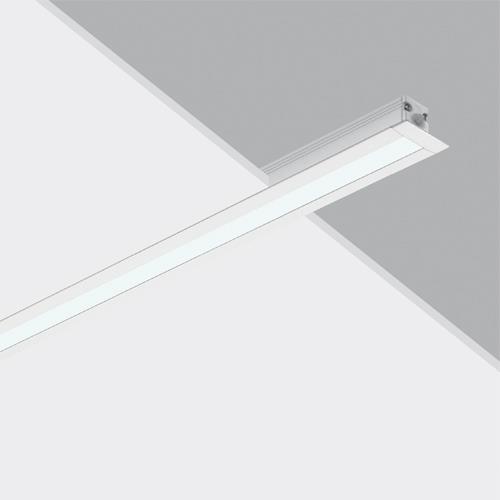

DFG fixture series, which are the recessed type of EOSLED are produced in different widths. They can be used as a single profile up to approximately 2.5 meters length in linear applications. They can be attached end to end and be used as a continuous light source. Puller ceiling mounting device has been used in order to adhere to the surface of the edge of the frame thoroughly on the ceiling. Light coming from the LED source creates an extremely soft ambiance by passing through the prismatic diffusers.

Body: Aluminum extrusion body and painted with electrostatic powder paint

Diffuser: 2,8 mm thick prismatic

Colour: White or Grey


Catalogue Pages

Code Led Luminous Flux (lm) System Power (W) Protection Class Weight (gr)
DFG 20/20High Efficient Mid-Power LED2202.5IP20200
DFG 20/50High Efficient Mid-Power LED6607.5IP20300
DFG 20/100High Efficient Mid-Power LED1.25015IP20500
